DIN14441 self-locking exhaust manifold copper lock nut

DIN14441 slit exhaust copper lock nut M6

Size: M6~M12. The locking mechanism for this nut is based on the slit at the collar. The slit is collapsed before tightening onto the screw or bolt. As the nut is tightened onto the fastener, the slit expands, pinching the threads of the screw and locking the nut in place.

Model : ELN-0001

Q'ty :

Name	Slotted exhaust manifold copper nut
Material	Carbon Steel
Standard	DIN14441, DIN14440
Surface	Copper plating
Size	M6 x KW9
Type	A

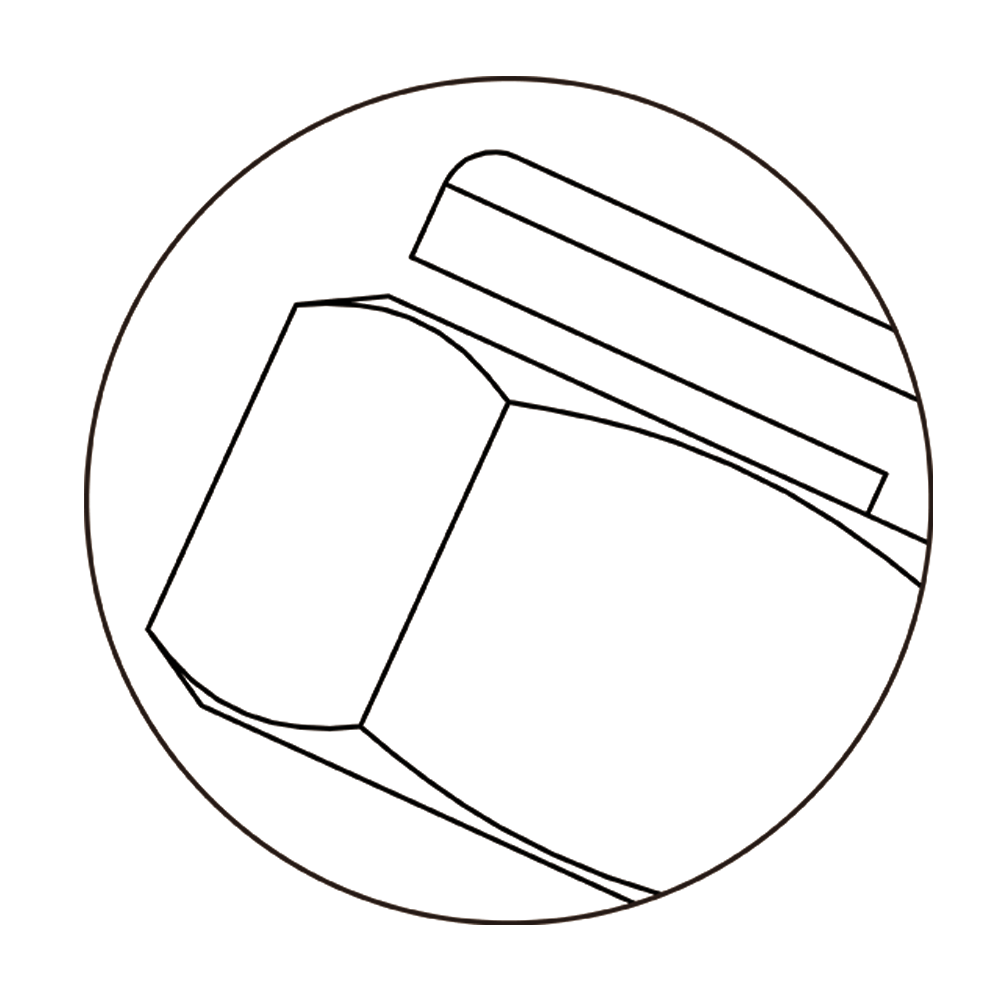

Copper Nut | Exhaust Nut | Self locking nut copper plated

TYPE	M	Height	Collar Dia.	A/F(S)
A	M6 x P1.0	7	8.5	9

The locking mechanism for this nut is based on the slit at the collar. The slit is collapsed before tightening onto the screw or bolt. As the nut is tightened onto the fastener, the slit expands, pinching the threads of the screw or bolt and locking the nut in place.

Vehicle Manufacturer: BMWApplication: BMW C1, C1 200, G450X, K1, K75, K100, K1100, K1200Model Years:1982 - 2010Manufacturer #: 11 62 1 744 323
