What is Sex bolt & Barrel nut(Sleeve Nut)?

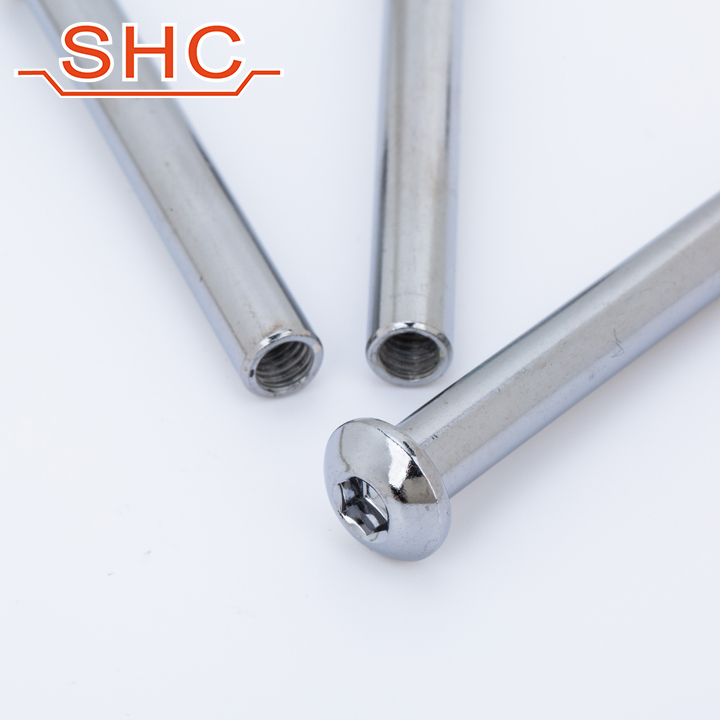

A sex bolt is a type of mating fastener (nut) that has a barrel-shaped flange and protruding boss that is internally threaded. The bolts sits within the components being fastened, the flange provides the bearing surface. The sex bolt and accompanying machine screw sit flush on either side of the surfaces being fastened.

It is normally chosen because of its low profile compared to other nuts. The sex bolt often has a built-in feature, such as a slot, to aid in tightening the fastener. Some sex bolts, more commonly known as "architectural bolts", have knurled barrels to allow one-sided assembly.

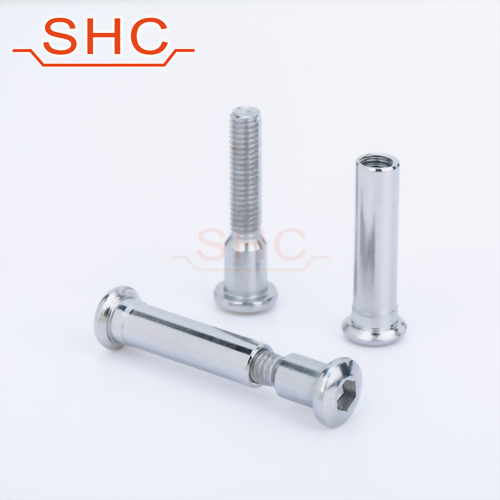

The sex bolt consists of a female (internally) threaded barrel (nut) and a male (externally) threaded screw. Both the barrel and screw have heads designed to clamp (bind) material between the head of the barrel and the head of the screw, or to bridge the gap between two parts.

Other names for sex bolts include binding barrels, Chicago screws, and connector bolts.
