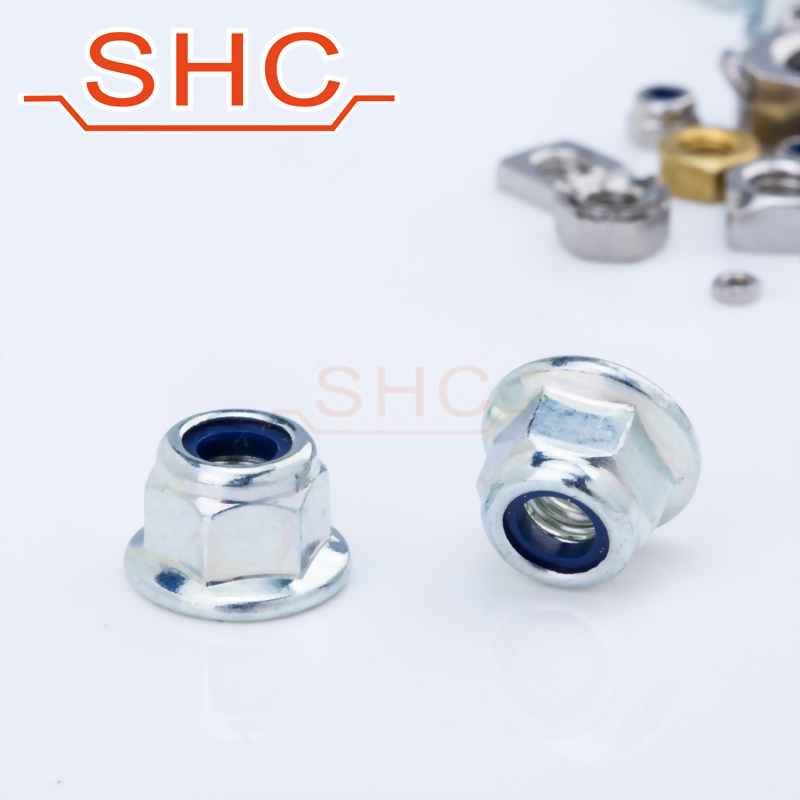

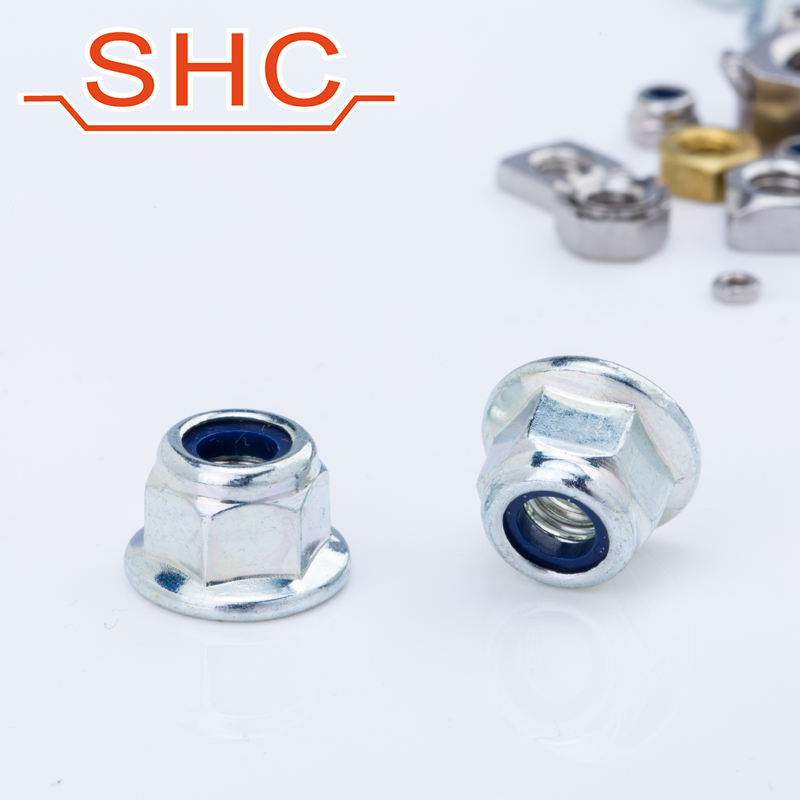

DIN982 | DIN985 | DIN6926 Hex flange nylon insert lock nut zinc plating
A nyloc nut, also referred to as a nylon-insert lock nut, is a kind of locknut with a nylon collar that increases friction on the screw thread. The insert locks the nut against the screw as a result of friction, caused by the radial compressive force resulting from the deformation of the nylon
|
Product name |
Flange Nylon insert lock Nut / Flange Nyloc nut |
| Size | M3~M24 |
| 5/32"~1" | |
| Standard | DIN982 |
| DIN985 | |
| DIN6926 | |
| IFI-100 | |
| Material | Stainless steel SUS302/SUS304/SUS316 |
| Carbon steel C1008~C1045, C10B21 | |
| Alloy steel | |
| Surface treatment | Zinc plating White/Yellow/Black |
| Nickel zinc plating | |
| Galvanized | |
| Passivation |
Application
The Nyloc nut is an economic locking nut and ideal in applications where vibration or motion could loosen or undo the nut.Widely used in the Automotive , Cycling, electronic bicycle and cabinet furniture industries.
